Working principle of sanitary ball valve

A precisely manufactured ball with a through cavity is placed between two flanges and two PTFE valve seats in the valve body. A valve spindle acts on the ball by 90° rotation, thus opening or closing the valve.

At the same time, a valve seat cleaning joint can be added to clean the ball valve cavity and discharge it through the drain hole.

The sanitary ball valve is operated by a pneumatic head or manually by a handle.

The series of sanitary ball valves have three structures:

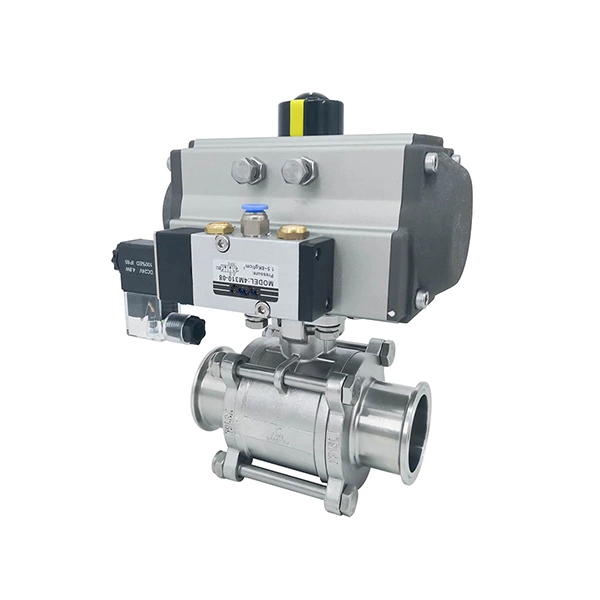

The sanitary ball valve is a three-piece structure, consisting of two flanges, a valve body and two PTFE valve seats. It is installed with bolts. A valve seat cleaning joint can be added to clean the ball valve cavity and discharge it through the drain hole.

The sanitary ball valve is a three-way ball valve with two structural forms: T-type and L-type. It consists of a valve body, a valve cover and a PTFE valve seat, and is installed by thread.

The sanitary ball valve is a two-piece structure, consisting of a valve body, a joint and two PTFE valve seats, and is installed by clamping. A valve seat cleaning joint can be added to clean the ball valve cavity and discharge it through the drain hole.

Sanitary ball valve technical parameters

Metal material	Parts in contact with the product	304L/316L(1.4307/1.4404) Forged
Metal material	Parts not in contact with the product	304(1.4301)
Sealing material	Standard	EPDM/PTFE
Sealing material	Optional	FPM/PTFE，HNBR/PTFE，Silicone/PTFE
temperature	Continuous operating temperature	-20~+135℃(EPDM)
temperature	Sterilization temperature	150℃(max 20min)
pressure	Work Pressure	0~5bar(standard)
pressure	Control gas source pressure	5~8bar
Surface treatment	Internal surface treatment	Ra≤0.8μm
Surface treatment	External surface treatment	Matt
connect	Connection Standards	Welding end: DIN 11850 Series 2
	Connection Standards	Welding end: Inch pipe diameter standard
	Connection method: welding, quick-release, thread and other common connection methods
