Sanitary negative pressure pump

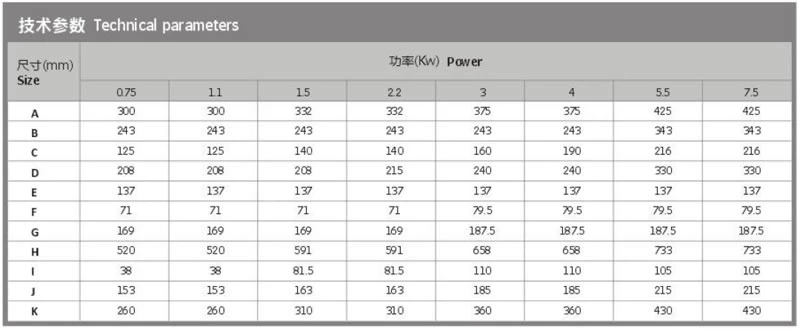

Technical Parameters

application	It is a turbine diversion centrifugal negative pressure pump, which can extract liquid from the vacuum tank at a negative pressure of 0.09MPa.
Specification	1T-500T,0.75KW-75KW
Material	SUS304, SUS316L SUS304, SUS316L (In terms of material selection, the pump body, pump cover, impeller and other parts that come into contact with the material are made of SUS316L or SUS304 stainless steel)
standard	DIN, SMS
impeller	Split and semi-open impellers
Working conditions	Sanitary negative pressure pump is used for high and low liquid level and horizontal transportation, with certain suction
Surface treatment	The wetted parts are polished, the rest are matte or sandblasted
Maximum inlet pressure	0.5MPa
Temperature range	-10℃ to 140℃ (EPDM)
Flushable mechanical seal	Water pressure: Maximum 0.1MPa Water volume: 0.25-0.5L/min

Motor

1. According to the configuration, it mainly adopts the high-efficiency M2BAX three-phase AC motor of the "ABB" brand, which is designed and manufactured according to the International Electrotechnical Commission IEC60034, IE60072 standards and meets the CE marking requirements of the European Community.

2. Explosion-proof motors can be selected to meet the needs of different occasions. 3.

Superior electrical performance, low noise, low vibration, the standard design protection level of the motor is IP55, and the insulation level is F class

4. Frequency: 50Hz/60Hz

5. Working mode: continuous (SI)

6. Speed: The speed of the standard pump is 2900r/min
