Basic Information
| app |
Suspended solid liquid, powder, viscous liquid, liquid, granules |
Mixing method |
Customization |
| Application Areas |
Chemical |
Certification |
ce、ISO |
| Mixing drum shape |
drum |
Layout Type |
particle |
| Operation Type |
Cycle operation |
Additional Features |
Mixing, heating, cooling |
| Product Name |
Chemical reactor mixing tank |
condition |
New |
| Transport bag |
Plywood shell |
Voltage |
380V/220V (optional) |
| HS Code |
8479820090 |
Specification |
50-5000L |
| origin |
China |
Production Capacity |
200 Set/Month |
Packaging and Delivery
| Packing size |
100.00cm * 100.00cm * 200.00cm |
| Total weight of packaging |
900.000kg |
Product Description
| Volume(L) |
Material |
Plate thickness (mm) |
Hybrid power (KW) |
Mixing speed |
Heating power (KW) |
Heating tube |
| 50 |
304/316L |
2.0/2.0 |
0.75 |
0-65rpm |
9 |
4.5KW*2pcs |
| 100 |
304/316L |
2.0/2.0 |
0.75 |
0-65rpm |
13.5 |
4.5KW*3pcs |
| 200 |
304/316L |
2.0/2.0 |
0.75 |
0-65rpm |
13.5 |
4.5KW*3pcs |
| 300 |
304/316L |
2.0/2.0 |
1.5 |
0-65rpm |
18 |
6KW*3pcs |
| 500 |
304/316L |
2.0/2.0 |
1.5 |
0-65rpm |
18 |
9KW*3pcs |
| 1000 |
304/316L |
2.0/3.0 |
3 |
0-65rpm |
27 |
12KW*3pcs |
| 2000 |
304/316L |
2.5/3.0 |
4 |
0-53rpm |
36 |
12KW*3pcs |
| 3000 |
304/316L |
3.0/4.0 |
5.5 |
0-53rpm |
36 |
15KW*3pcs |
| 5000 |
304/316L |
3.0/4.0 |
7.5 |
0-42rpm |
45 |
10KW*6pcs |
Multifunctional liquid paste mixing tank, emulsifier, reactor, fermentation tank, high-speed dispersion tank, vacuum defoaming mixer, liquid preparation tank, crystallization concentration tank, emulsification tank, mobile container, various silos, storage tanks, cooking tanks, sterilization tanks, a full set of automated material handling and conveying systems. Low energy consumption and high efficiency. The

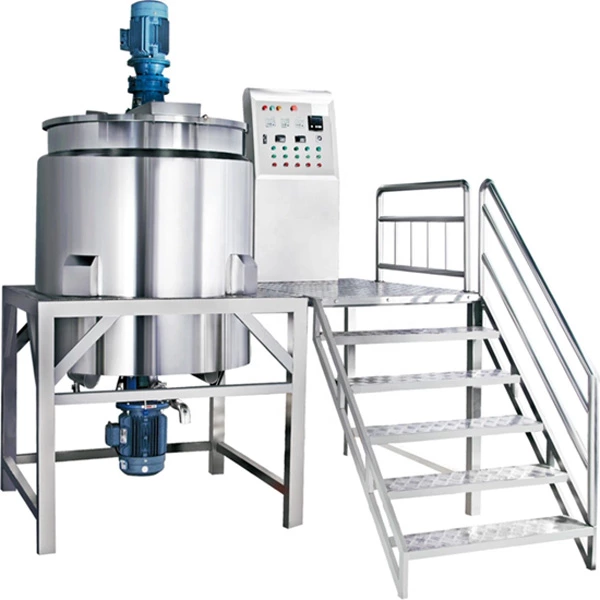

mixing box is mainly composed of motor, reducer, mixing box, mixing box cover, agitator, bracket, transmission, shaft sealing device, electric control box and other components. It is also equipped with electric heating and steam heating interlayer and related devices according to process requirements, and a cooling device is added. The mixing tank and the mixing tank cover can be connected by sealing flange or welding. The mixing tank and the mixing tank cover can be set with process pipe holes such as feed discharge port, observation window, temperature and pressure port, steam fractionation, and safety vent as required. This machine can be used as an independent production and mass production material, or it can be connected to a full set of automated production lines. The front various liquids and powders are quantitatively added with local mixing and stirring, and then connected to the automatic quantitative filling, sealing, and labeling production line (small batch production can be connected to semi-automatic filling, machine).
